Flange Spray Belt
SMP Flange Spray Belts protect workers from chemical exposure, hot liquid spray, or gas burns. The patented innovative design of the SMP Flange Spray
Belt deflects the product spray through the bolt holes instead of directly spraying the operator.
When unbolting flange connections it is likely that
dangerous gases or chemicals will spray out onto
your work crew. This puts your personnel in the
direct line of fire when breaking open flange sets.
Deflecting the spray through the bolt holes of the
flanges ensures protection from chemical spray
exposure. SMP Flange Spray Belts are not intended
to seal or contain any pressure, but to deflect
product spray into a known and safer direction.

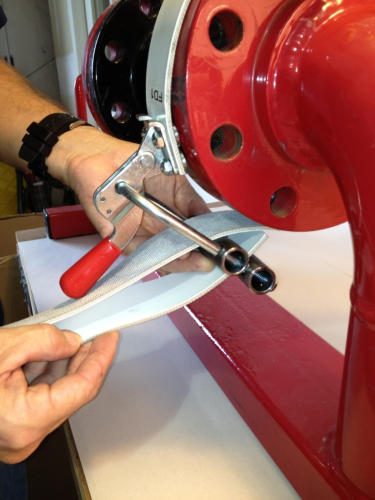

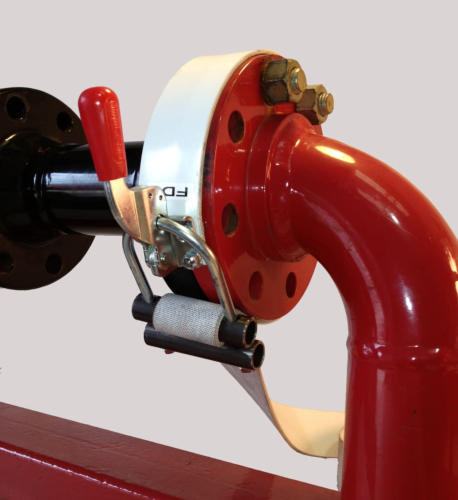

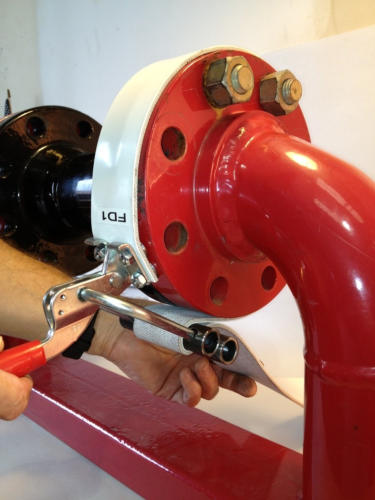

To use the SMP Flange Spray Belt,
simply loop the flange belt around
the flange and engage the cam over
latch to prevent chemical exposure,
hot liquid spray, gas burns, and a
multitude of other LTI-causing
incidents.

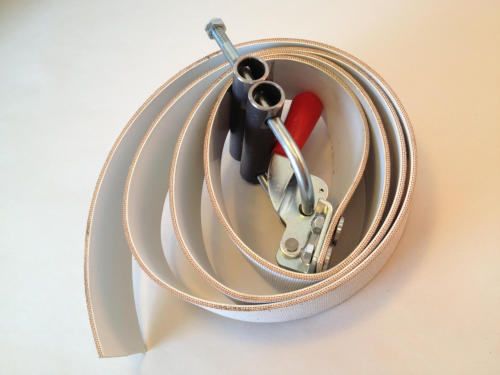

The Flange Belt is available in 2 sizes: the SMP FD1 Spray Deflector Belt fits flanges with pipe OD up to 22 inches and the SMP FD2 Spray Deflector Belt fits
flanges with pipe OD up to 45 inches. The SMP Flange Spray Belt also features a flange access gap to allow the operator to use a Pop-It tool or a pry bar to break
the seal between flanges. SMP Flange Spray Belts are meant to be used as an extra line of protection and should never be used instead of, or without, proper PPE.
