VALVE-OUT
SMP’s Valve-Out Tool is a bolt-hole specific tool.
With the Valve-Out Tool valve spreader you can
eliminate the need for come-alongs, track-hoes, wire
rope, chains, hammers and wedges.

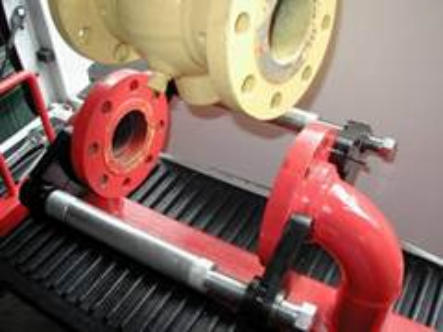

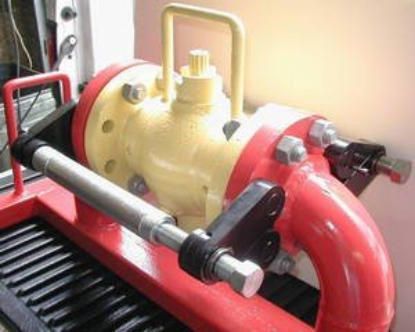

When you turn the jack-bolt, the plates cantilever back, binding the bolt-hole pins in the bolt-holes, pulling the outside flanges back, spreading the flanges
up to 1/2″ The SMP Valve-Out flange spreader tool requires no gap and is an excellent tool for changing gaskets.

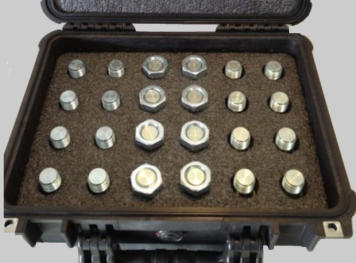

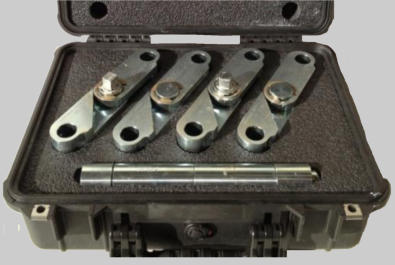

The SMP VOC1 Kit – 4
spreading plates, 2 sets
(11.5” each) of spacer bar
segments, and 8 each
interchangeable bolt hole
pins 3/4″, 7/8”, and 1”
The SMP VOC2 Kit – 4
spreading plates, 2 sets (11.5”
each) of spacer bar segments,
and 8 each interchangeable
bolt hole pins 1-1/8”, 1-1/4”,
and 1-3/8”

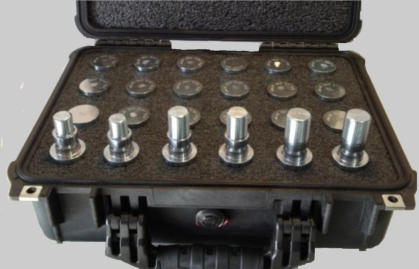

The SMP VOC1-2 Kit – 4
spreading plates, 2 sets (11.5”
each) of spacer bar segments,
and 8 each interchangeable
bolt hole pins 3/4″, 7/8”, 1”,
1-1/8”, 1-1/4”, and 1-3/8”
All components are contained in hard shell carrying cases with custom foam inserts.
Extra Spacer Bars Available for Valves
Wider than 12″
VOC SPCR2 – 2″ Valve-Out Spacer Bar
VOC SPCR4 – 4″ Valve-Out Spacer Bar
VOC SPCR6 – 6″ Valve-Out Spacer Bar

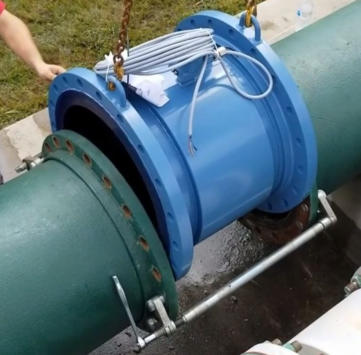

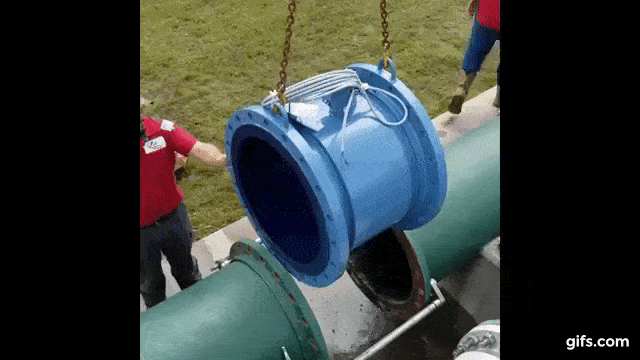

In addition, SMP’s Valve-Out Tool valve
spreader allows for safe and easy
removal of control valves, by-pass valves,
expansion joints, spools, rupture disks,
regulators, orifice plates, and meters.
